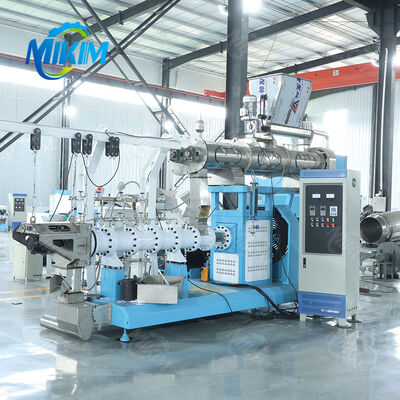

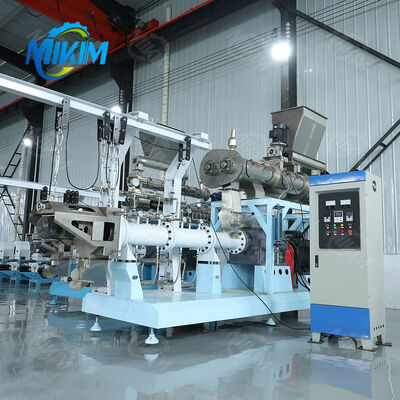

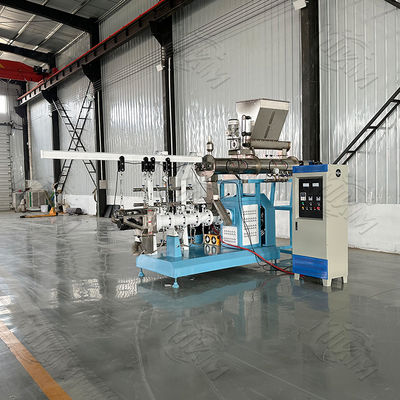

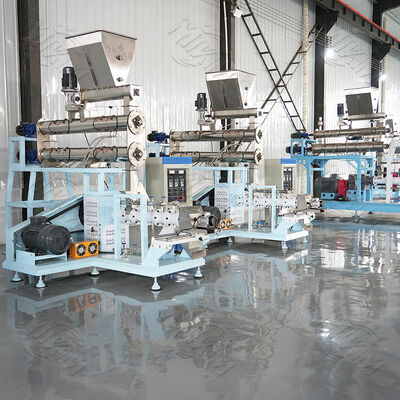

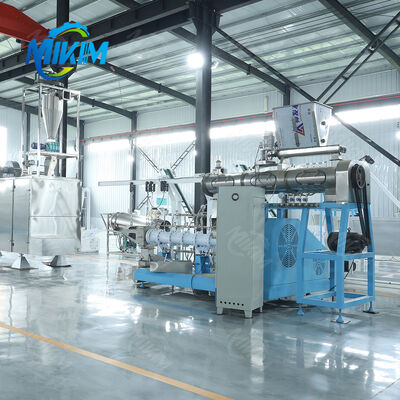

Big Capacity 1-4T/H Single-Screw pet food extruder floating fish feed pellet making machine for sale

Single-Screw floating fish food pellet making machine is used for processing for dogs and cats (pet food), birds, piglets, frogs, sinking and floating aquatic feeds for fish. Which is high and new technical program as to catch the developing pet food market. CE certificate best price floating aquarium fish feed pellet food making machine mainly use maize, fish powder, meat powder and some food additive as main raw material, through mixing, extruding, roasting, flavoring to get the final puffed pet food.

The raw materials are fully matured in a modulator and then made into pellets to meet the food needs of fry to adult fish.
Feed Pellets size:
Model 40-50 can be made in sizes: 1.5mm, 1.8mm, 2mm, 2.5mm, 3mm, 4mm, 5mm Model 60 can be made in sizes: 1.5mm, 1.8mm, 2mm, 2.5mm,
3mm, 4mm, 5mm, 6.5mm Model70 can be made in sizes: 1.5mm, 1.8mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm Model 80-90 can be made in sizes:
1.5mm, 1.8mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 6.5mm, 7mm

Choice of Single-Screw floating fish feed pellet maker machine
 Recommend: 2mm, 3mm, 4mm, 5mm, the best operation, easy to shape, and fish digestion is better, if the particles are too large in the water without decomposition or too hard or not enough chewing will cause indigestion.
The following are the finished feed pellets that the fish feed machine can make.
Changing different molds can produce pellet feed suitable for aquatic products and pets.

single screw floating fish food pellet maker machine advantages
1. Low energy consumption
For fresh water floating feed production, the capacity can be increased 15-20% and energy consumption per Mtons can be reduced to 20-23kW.h/Mton comparing the equipment of competitors in Chinese market.
2. Wild range

MIKIM series can handle variable formulas like high, middle and low level recipe of floating, sinking and slow sinking aquafeed and 0.8 mm floating feed and sinking feed micro pellet production.
3. Homogenous of pellet

Pressure before die has been optimized and homogenous of pellet has been improved with advance technology of screw geometry, steady screw configuration, high accuracy screw and barrel sleeve and twin die discharging technique.
4. Highlight Features-Important technological innovation

With innovation of technology, MIKIM series twin screw extruder can fix the issue of production with low level formula which contains low level of starch and high level of protein and fat, like poor water stability and homogenous, poor apparent shape. The digestibility is improved with the pellet produced by H series twin extruder.

5. Better degree of gelatinization

High efficiency 3 layer pre-conditioner and particular liquid injection structure is implemented to guarantee mixture of moisture and raw material. Using EDEM to simulate the areas organization and optimize order of paddles, to increase fill ratio, extend residence time and improve performance of preconditioner.
6. Fully-automatic control system

Easily operation with fully-automatic control system can reduce labor cost.
All the data are recorded to reduce the dependency of operator.
Advanced control units can guarantee stable, accurate and sensitive production.

7. More stable and safety
More stable is pursed with American and European standard gearbox contains the fifth level high accuracy gears, international first-class brand bearing, oil sealing and high efficiency transmission. Replacement cycle is extended to 3000-5000 hours for screw with new style wear-proof material.

8. High capacity
All new MIKIM series twin screw extruder applies 20:1 as the ratio of screw length by diameter and steady-state screw configuration. Therefore high capacity of floating and sinking feed production can be pursued.

9. Optional Function: Bulk Density Control System
Either pressure chamber and vacuum system can be chosen to produce high bulk density required pellet (sinking aquafeed, etc) and increase the bulk density and capacity, improve the appearance of pellet significantly.
